KON-TIKI-TAS Stretch deep cone kiln

This model is designed for farmers, contractors or land owners with lots of biomass to produce Biochar on a larger scale. The K-T-T Stretch version includes the latest design features todate. Each batch can produce ~ 1,700ltr of Biochar within 4 to 6 hours.

The thinner the feedstock the faster the process.

Improved Design Features

• The 1.85m3 Cone is made from 5mm steel plates (previous 3mm)
• Removable (new) burn floor barrier made of solid steel bars at pivot point
• Safe & easy to operate Cable Winch tilting mechanism
• Robust skid frame & fire protection plate (new)
• Uniquely designed flood quenching and drainage pipe at the cone floor complete with high quality 50mm ball valve and fast coupling
• Stainless-steel heat & wind Rim Shield for operator safety and protection from radiating heat to bystanders and pets. It also optimises the combustion of wood gas (minimum smoke emissions)
• All prices are inclusive GST ex works – manufacturer period ~ 3 weeks

Optional

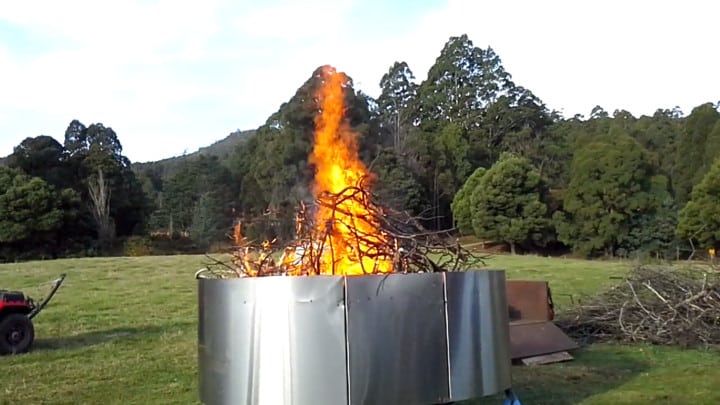

• Air Injection Rim Tube – stainless steel with 50mm fast coupling to boost flame temperature (does not include leaf blower)

Measurements “STRETCH” Model:

• Height of STRETCH Kiln incl. skid frame: 1.280m
• Volume to the top rim: ~1,850ltr
• Total volume filled with char: ~1,700ltr
• Weight empty: ~820kg
